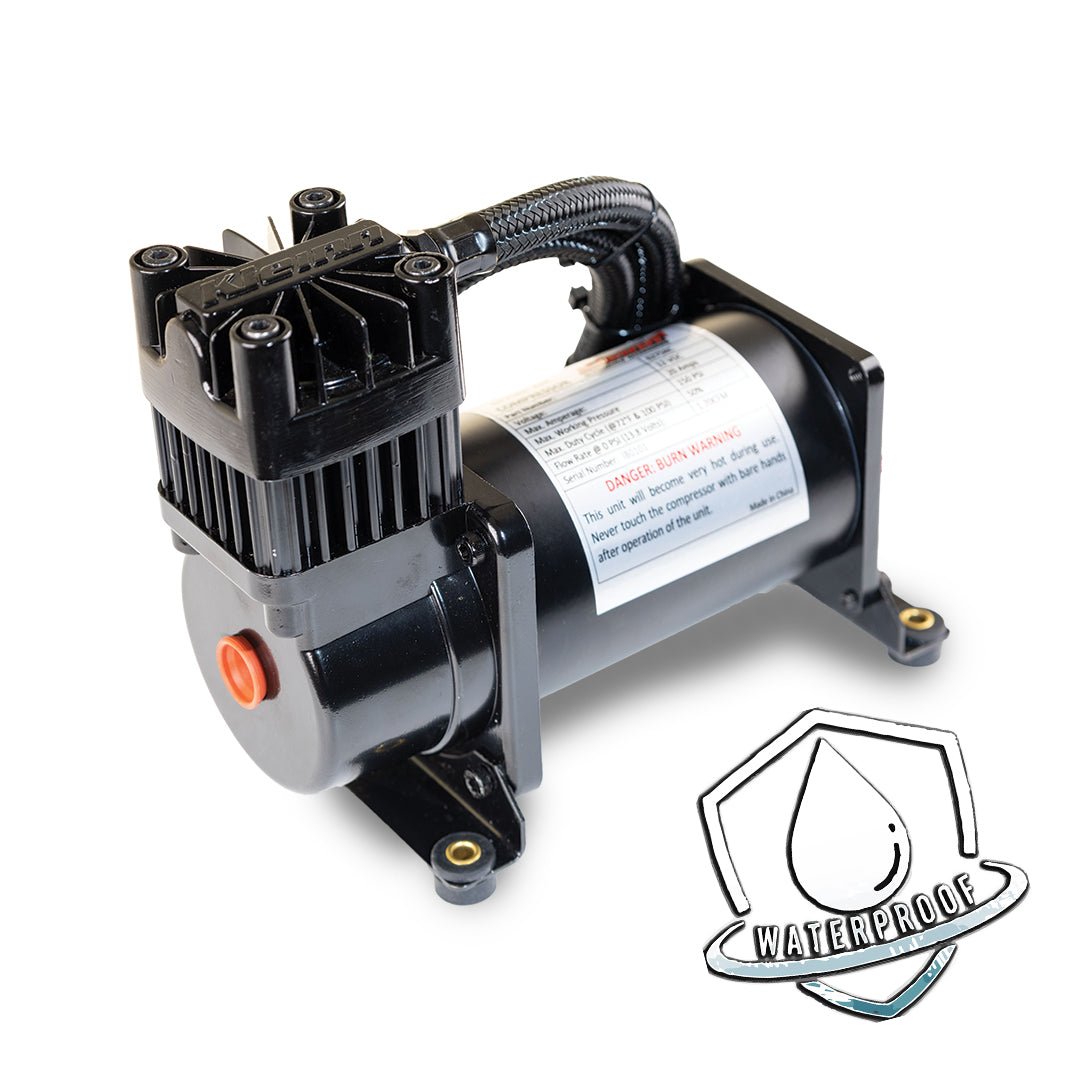

Model 6275RC 50% Duty Cycle Air Compressor

Model 6275RC Fully Submersible Waterproof 150 PSI  Medium Duty Air Compressor

Kleinn Automotive offers the first fully submersible 12 volt automotive air compressors on the market. Designed specifically for the off road enthusiast, this medium duty air compressor is capable of running fully submerged under water. Regardless of the terrain or river crossings, this air compressor is ready to take on the elements. The Kleinn engineering team developed the 6275RC air compressor with modified seals & gaskets to make it completely waterproof. The 50% duty-cycle compressor is rated at 150 PSI and includes a snorkel air intake system with filter to locate the air intake up and away from dirt, water and debris insuring years of trouble free service.Replacement compressor for the 6275, HK5, HK6 kits.

• 12-Volt Permanent Magnetic Motor
• 50% Duty Cycle @ 100 PSI
• 150 Max PSI
• 18 Amp Max Draw
• Rated for use with up to 2.5 gallon tank
• Dimensions: 8.25”L x 4”W x 6.25”H
• Flow Rate: 1.56 CFM @ 0 PSI
• Shipping Weight: 9 lbs

Included:

• Installation Instructions
• Mounting Hardware (nuts, bolts, locking washers)
• Vibration Isolators
• Remote Intake "Snorkel System"
• Two Replacement Air Filter Elements
• Air Line for Remote Mount Air Filter Installation
• Stainless Steel Braided Leader Hose
• Check Valve

Installation Instructions

---

6275RC Performance Data
PSI	CFM	A	BAR	LPM	A
0	1.56	10	0	57.5	10
10	1.17	12	1	32	13
20	1.11	13	2	30	14
30	1.04	15	3	28.5	16
40	1.01	15	4	26.5	16
50	.97	16	5	24.5	17
60	.92	16	6	22.5	17
70	.88	17	7	21.5	18
80	.83	17	8	20	18
90	.79	17	9	18.5	18
100	.76	18	10	17	17
110	.72	18	*Supply Voltage: 13.8 Volts
120	.69	18
130	.65	18
140	.62	17
150	.57	17

---

6275RC Tank Fill Rates
1 Gallon Tank	Fill Rate
0 - 105 PSI	1 Min 5 Sec
85 - 105 PSI	14 Sec
0 - 145 PSI	1 Min 39 Sec
110 - 145 PSI	28 Sec
2.5 Gallon Tank	Fill Rate
0 - 105 PSI	2 Min 29 Sec
85 - 105 PSI	36 Sec
0 - 145 PSI	4 Min 7 Sec
110 - 145 PSI	1 Min 28 Sec
