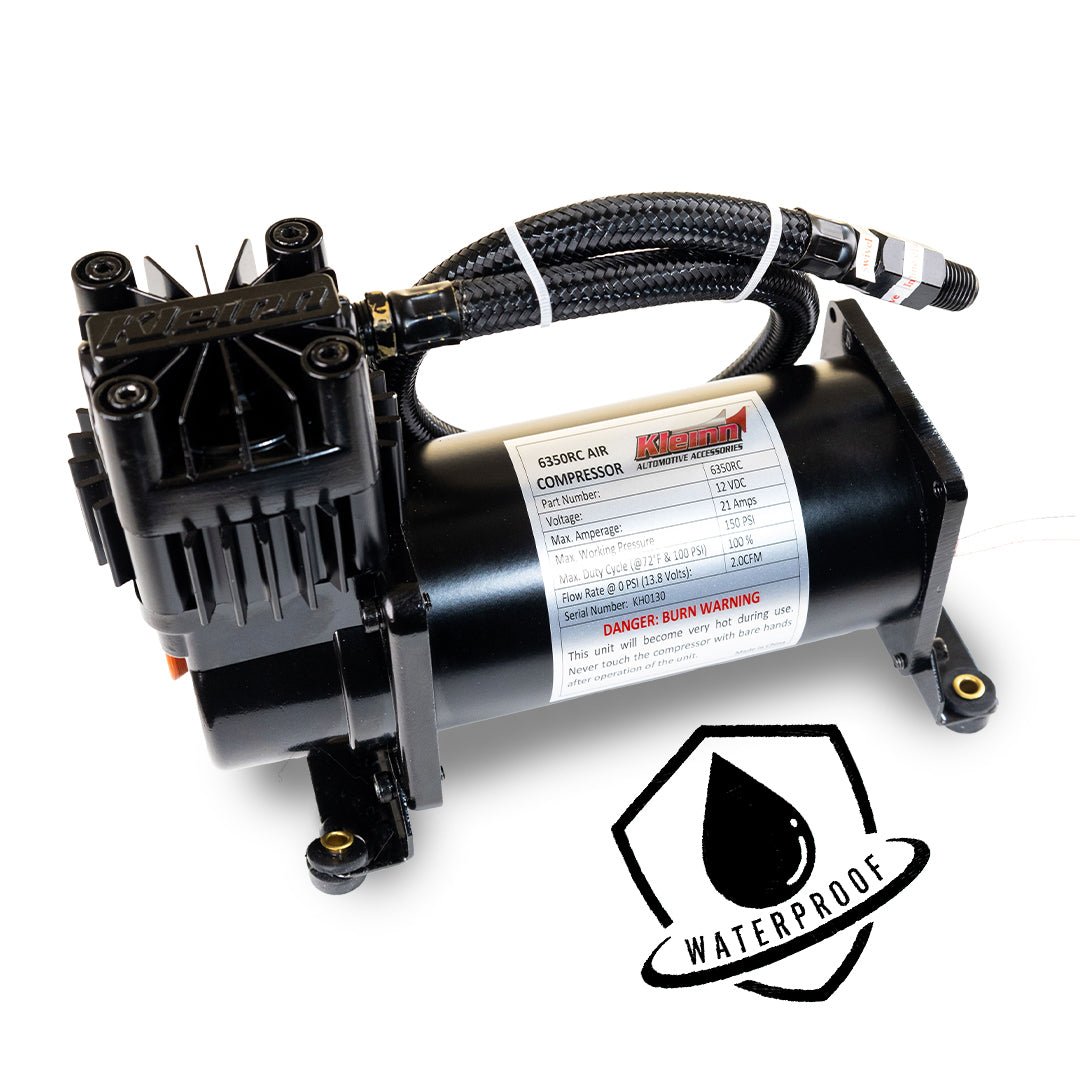

Model 6350RC 100% Duty Cycle Air Compressor

Model 6350RC Fully Submersible Waterproof 150 PSI  Heavy Duty Air Compressor

Kleinn Automotive has released the first fully submersible 12 volt automotive air compressor on the market. Designed specifically for the off road enthusiast, this heavy duty air compressor is capable of running fully submerged under water. Regardless of the terrain or river crossings, this air compressor is ready to take on the elements. The Kleinn engineering team developed the new 6350RC air compressor with modified seals & gaskets to make it completely waterproof. The 100% duty-cycle compressor is rated at 150 PSI and includes a snorkel air intake system with filter to locate the air intake up and away from dirt, water and debris insuring years of trouble free service.Replacement compressor for HK7, HK8 as well as Kleinn vehicle specific kits with a SKU that ends in 230

• 12-Volt Permanent Magnetic Motor
• 100% Duty Cycle @ 100 PSI
• 150 Max PSI
• 21 Amp Max Draw
• Rated for use with up to 3 gallon tank
• Dimensions: 9.25”L x 4”W x 6.50”H
• Flow Rate: 2.0 CFM @ 0 PSI
• Shipping Weight: 9 lbs

Included:

• Installation Instructions
• Mounting Hardware (nuts, bolts, locking washers)
• Vibration Isolators
• Remote Intake "Snorkel System"
• Two Replacement Air Filter Elements
• Air Line for Remote Mount Air Filter Installation
• Stainless Steel Braided Leader Hose
• Check Valve

Installation Instructions

• Submersible high output 12-volt compressor for automotive applications
• Heavy-duty 150 PSI compressor with 100% duty-cycle
• Produces 2.0 CFM for quick inflation of tires up to 35 inches
• Remote snorkel air intake system with air filter

6350RC Tank Fill Rates
2.5 Gallon Tank	Fill Rate
0 - 105 PSI	2 Min 55 Sec
85 - 105 PSI	45 Sec
0 - 145 PSI	4 Min 45 Sec
110 - 145 PSI	59 Sec
5 Gallon Tank	Fill Rate
0 - 105 PSI	5 Min 55 Sec
85 - 105 PSI	1 Min 30 Sec
0 - 145 PSI	9 Min 45 Sec
110 - 145 PSI	3 Min 15 Sec
