Compressor Upgrade Kit for the JL-JK-OBA

2007-2025 Jeep Wrangler JKU & JLU (4-Door Only)

(Excludes 2 Dr, Diesel, Hybrid & Models equipped with driver side skid plate)

Want to air up twice as fast? Tired of walking around the entire vehicle with air outlet? Add the Model JK6450 Compressor Upgrade.This kit adds a second 6450RC waterproof air compressor for lightning fast inflation and a second remote connect tire inflator allowing multiple air outlet locations on the Jeep. Includes all necessary airline, fittings and a compressor wiring kit with required relay.The JL-JK-OBA has mounting studs and the tank has air ports to accept the JK6450 with no modifications needed.NOTE:  The JK6450 is designed as an upgrade for the JL-JK-OBAonboard air kit.  The kit can be used in other instances, it can be used to add our high output compressor to any tank or as a second 6450RC compressor on an existing system . Contact Tech Support if you have any questions.

Specifications:

• Waterproof air compressor is fully submersible
• Rated 100% Duty Cycle @ 100 PSI
• 150 PSI Maximum Output
• 23 Amp Max Draw
• Rated for use with up to 5-gallon tank
• Flow Rate: 2.0 CFM @ 0 PSI
• Dimensions: 16”L x 8”W x 14”H
• Shipping Weight: 15 lbs

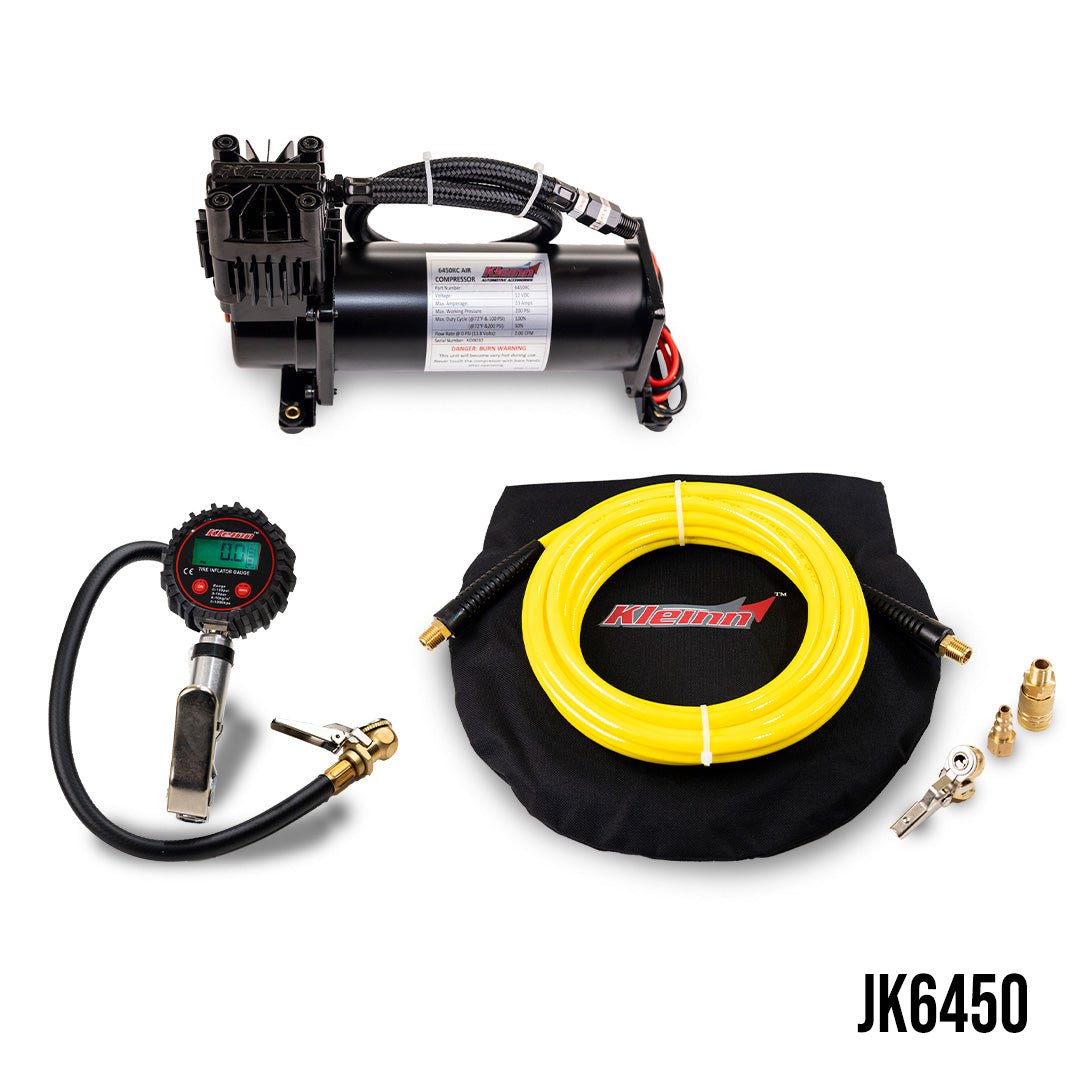

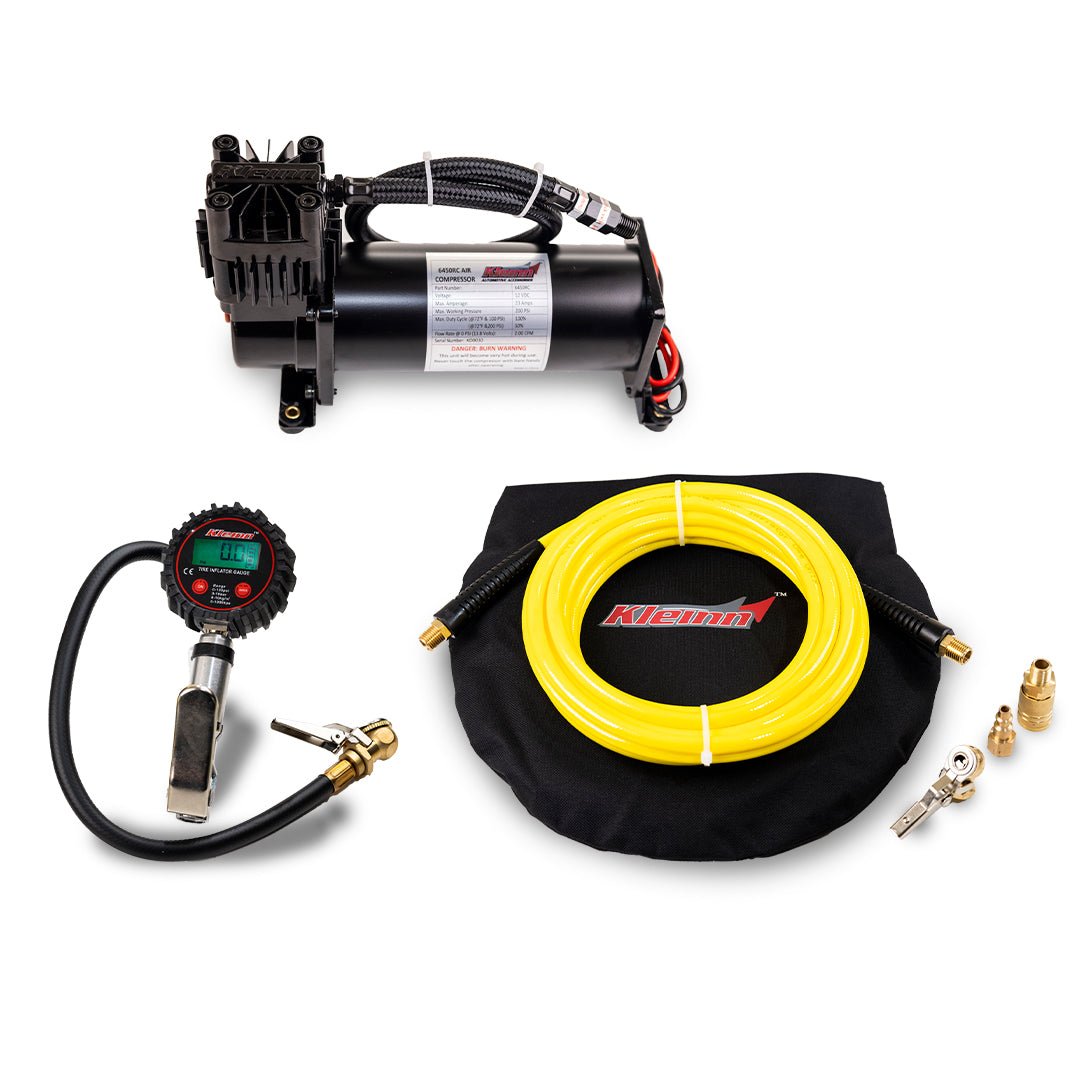

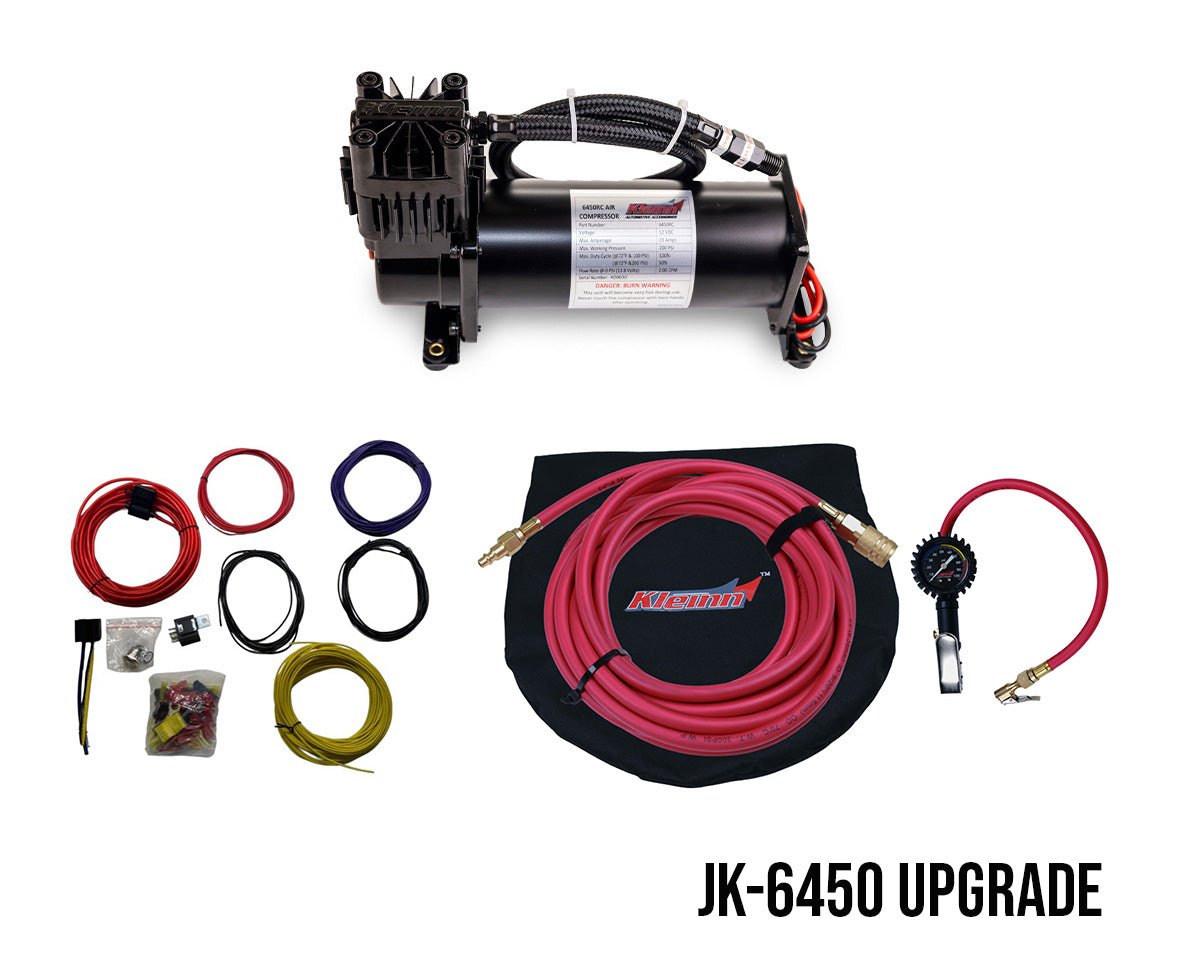

Included:

• 6450RC Waterproof Air Compressor
• Remote Mount Airline Connection
• Quick Connect Tire Inflator with Heavy Duty Air Hose, Locking Air Chuck and Storage Bag
• Remote Air Intake “Snorkel System” to keep dryer air coming into the compressor
• Two Replacement Air Filter Elements
• Wiring Harness with Relay
• Installation Instructions
