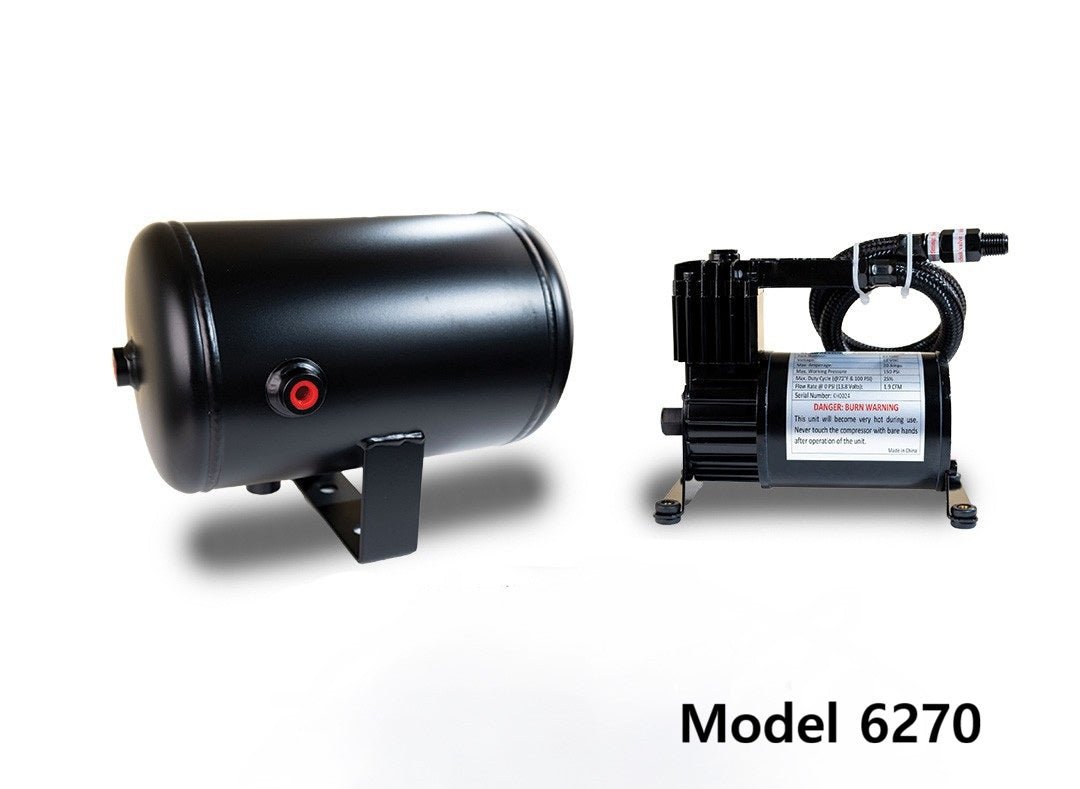

Model 6270 Light Duty Onboard Air System

Complete Light Duty Onboard Air System

High pressure air system for smaller spaces that still packs a high pressure punch! The model 6270 air system is the ideal product for powering any of the Compact Kleinn Air Horns. This kit has many features that simplify installation and prolong the life of the product. Sealed and moisture/dust resistant compressor bodies make installation on the exterior no problem. The kit also includes the "snorkel system" and check valves to protect the compressors. The air tank has 5 ports and is configured so that no matter how you mount it, there is always a drain port available on the bottom.Package Includes:

• 130 PSI compressor
• 1.0 gallon air tank (Five 1/4" NPT ports)
• 100/130 PSI - 2131 pressure switch
• 155 PSI - 52155 safety valve
• 1/4" NPT compression fitting
• 1/4" Drain Cock
• Remote mount intake filter
• Mounting brackets & hardware

Installation Instructions

---

Specifications
Compressor Length (in.)	7.50
Compressor Width (in.)	3.50
Compressor Height (in.)	5.50
Tank Length (in.)	10.75
Tank Width (in.)	5.75
Tank Height (in.)	8
Tank Capacity	1.0 Gallon
Max Pressure (psi)	130
Pressure Switch Settings (on/off)	100/130
Duty Rating	25%
CFM @ 0 PSI	1.34
Amp Draw	14
Thermal Protection	Yes
Shipping Weight	11 lbs
