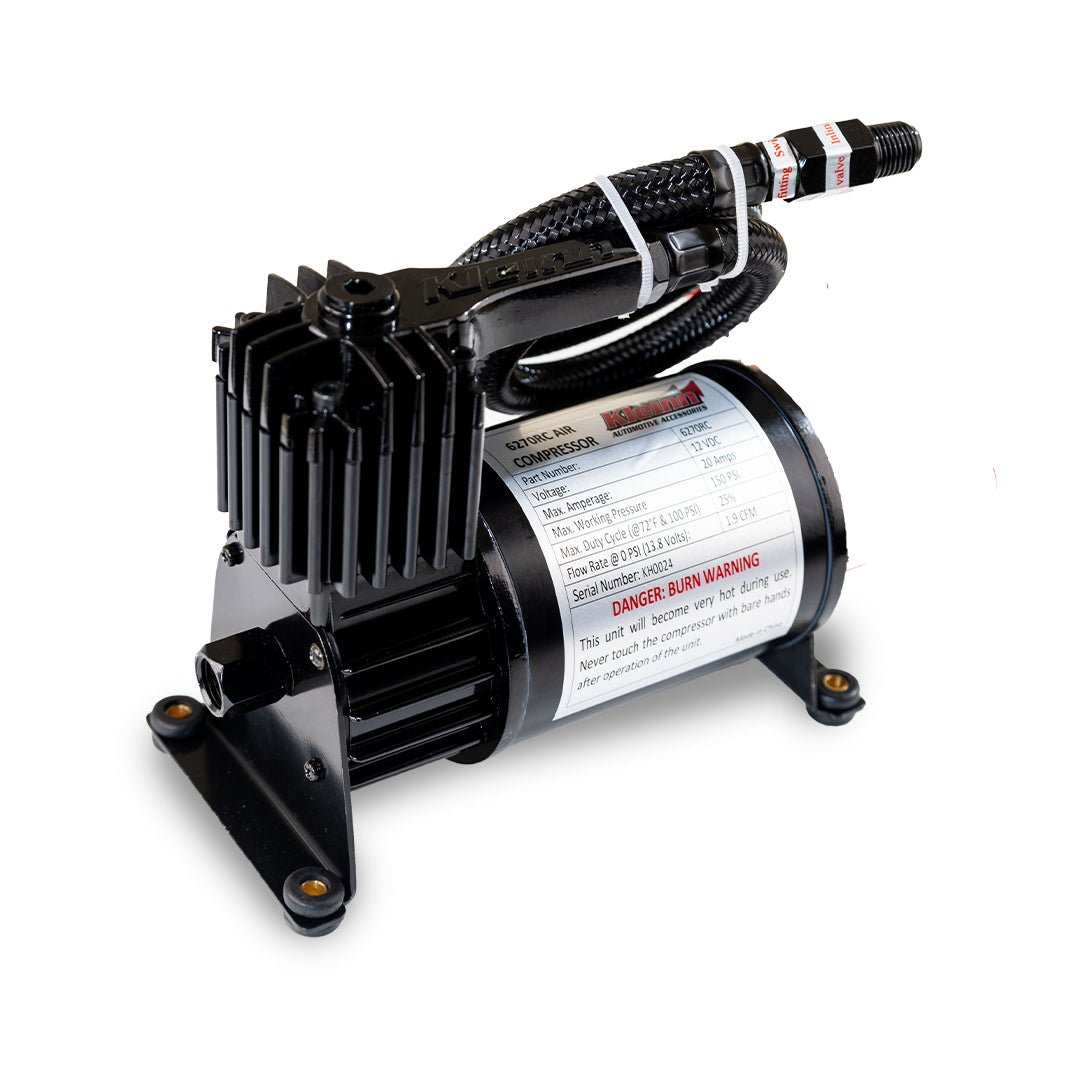

Model 6270RC 15% Duty Cycle Sealed Air Compressor - NOB

New Open Box [PNXXXX-NOB]Previously opened boxes that have been reboxed. NOB-Stock goods have the same 1-year warranty as all other Kleinn products.

Model 6270RC Replacement 130 PSI sealed compressor for 6270 air system, ProBlaster™ kits HK3, HK3-1, HK-4 and HK4-1

A sealed air compressor designed to fill up to a one gallon air tank. The 6270RC features thermal overload protection to keep the unit from overheating during extended use. Sealed to prevent damage from the elements.

• 12-volt permanent magnetic motor
• Duty Cycle: 15%
• Working Pressure: 130 PSI
• Amp Draw: 16 amps
• Rated for use with up to a 1 gallon tank
• Flow Rate: 1.34 CFM @ 0 PSI
• Dimensions: 7”L x 3.25”W x 5.75”H
• Shipping Weight: 5 lbs

Included:

• Installation Instructions
• Mounting Hardware (nuts, bolts, locking washers)
• Vibration Isolators
• Remote Intake "Snorkel System"
• Two Replacement Air Filter Elements
• Air Line for Remote Mount Air Filter Installation
• Stainless Steel Braided Leader Hose
• Check Valve

Installation Instructions

---

6270RC Performance Data
PSI	CFM	A	BAR	LPM	A
0	1.27	9	0	36	9
10	.9	10	1	25	10
20	.85	11	2	22.5	11
30	.79	11	3	21	12
40	.76	12	4	22	13
50	.72	12	5	19	13
60	.71	13	6	17.5	14
70	.67	13	7	16.5	14
80	.65	14	8	15.5	14
90	.62	14	9	14	14
100	.58	14	10	18	19
110	.57	14	*Supply Voltage: 13.8 Volts
120	.53	14
130	.49	14

---

6270RC Tank Fill Rates
.5 Gallon Tank	Fill Rate
0 - 105 PSI	50 Sec
85 - 105 PSI	10 Sec
0 - 130 PSI	1 Min
90 - 130 PSI	17 Sec
1 Gallon Tank	Fill Rate
0 - 105 PSI	1 Min 40 Sec
85 - 105 PSI	25 Sec
0 - 130 PSI	2 Min
90 - 130 PSI	35 Sec
