Model 6275RC 50% Duty Cycle Air Compressor - NOB

KL 6275RC-NOB

$167.96
$167.96 $209.95
Out of stock
PROP 65 WARNING:
This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Sorry, it's out of stock.

But we can let you know when it's back in.

New Open Box [PNXXXX-NOB]
Previously opened boxes that have been reboxed. NOB-Stock goods have the same 1-year warranty as all other Kleinn products.

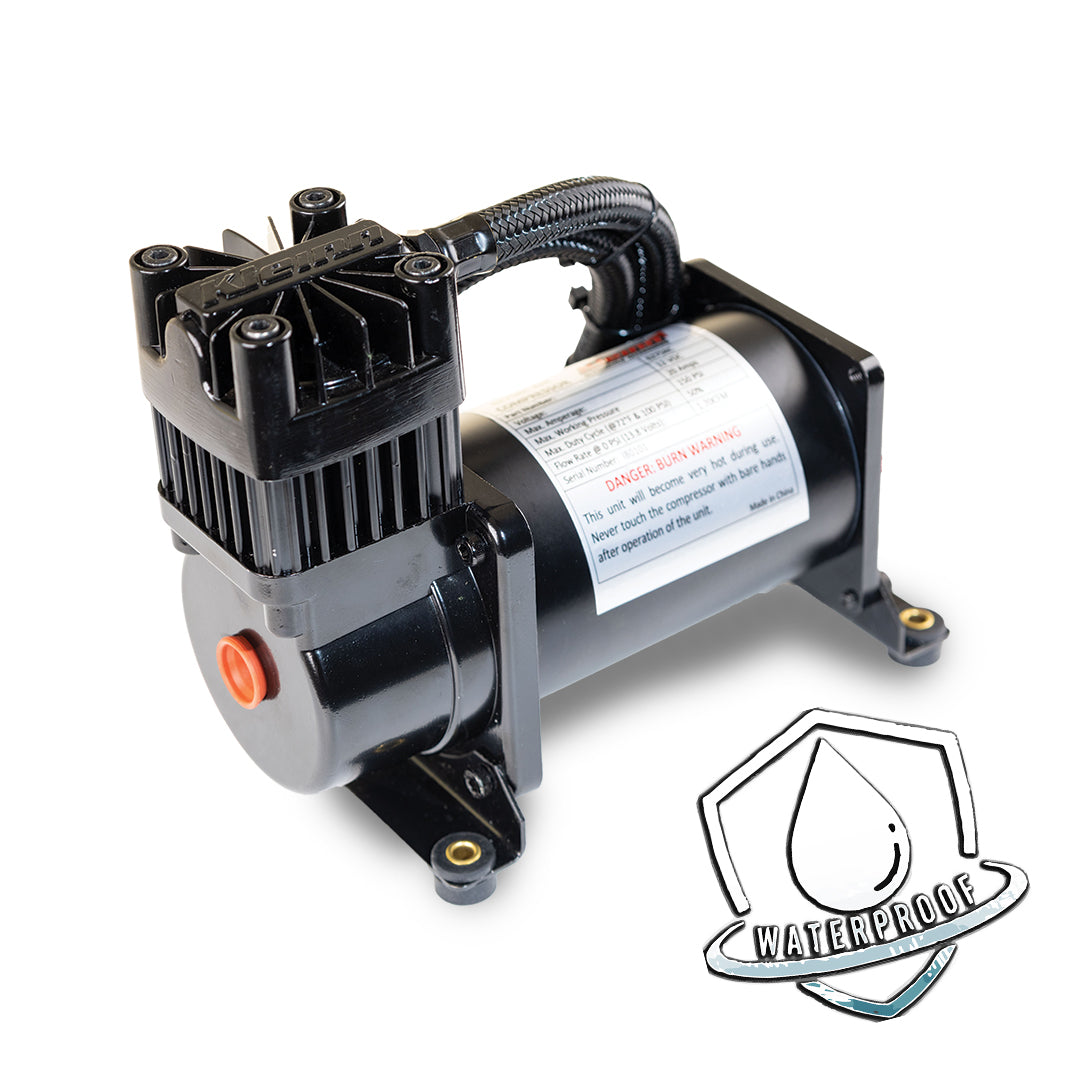

Model 6275RC Fully Submersible Waterproof 150 PSI  Medium Duty Air Compressor

Kleinn Automotive has released the first fully submersible 12 volt automotive air compressors on the market. Designed specifically for the off road enthusiast, this medium duty air compressor is capable of running fully submerged under water. Regardless of the terrain or river crossings, this air compressor is ready to take on the elements. The Kleinn engineering team developed the new 6275RC air compressor with modified seals & gaskets to make it completely waterproof. The 50% duty-cycle compressor is rated at 150 PSI and includes a snorkel air intake system with filter to locate the air intake up and away from dirt, water and debris insuring years of trouble free service.Replacement compressor for the 6275, HK5, HK6, HK-Euro and GMTRK-2 kits.
  • 12-Volt Permanent Magnetic Motor
  • 50% Duty Cycle @ 100 PSI
  • 150 Max PSI
  • 18 Amp Max Draw
  • Rated for use with up to 2.5 gallon tank
  • Dimensions: 8.25”L x 4”W x 6.25”H
  • Flow Rate: 1.70 CFM @ 0 PSI
  • Shipping Weight: 8 lbs
Included:
  • Installation Instructions
  • Mounting Hardware (nuts, bolts, locking washers)
  • Vibration Isolators
  • Remote Intake "Snorkel System"
  • Two Replacement Air Filter Elements
  • Air Line for Remote Mount Air Filter Installation
  • Stainless Steel Braided Leader Hose
  • Check Valve

Installation Instructions

6275RC Performance Data
PSI CFM A BAR LPM A
0 2.01 10 0 57.5 10
10 1.17 12 1 32 13
20 1.11 13 2 30 14
30 1.04 15 3 28.5 16
40 1.01 15 4 26.5 16
50 .97 16 5 24.5 17
60 .92 16 6 22.5 17
70 .88 17 7 21.5 18
80 .83 17 8 20 18
90 .79 17  9 18.5 18
100 .76 18 10 17 17
110 .72 18 *Supply Voltage: 13.8 Volts
120 .69 18
130 .65 18
140 .62 17
150 .57 17
6275RC Tank Fill Rates
1 Gallon Tank Fill Rate
0 - 105 PSI 1 Min 5 Sec
85 - 105 PSI 14 Sec
0 - 145 PSI 1 Min 39 Sec
110 - 145 PSI 28 Sec
2.5 Gallon Tank Fill Rate
0 - 105 PSI 2 Min 29 Sec
85 - 105 PSI 36 Sec
0 - 145 PSI 4 Min 7 Sec
110 - 145 PSI 1 Min 28 Sec
