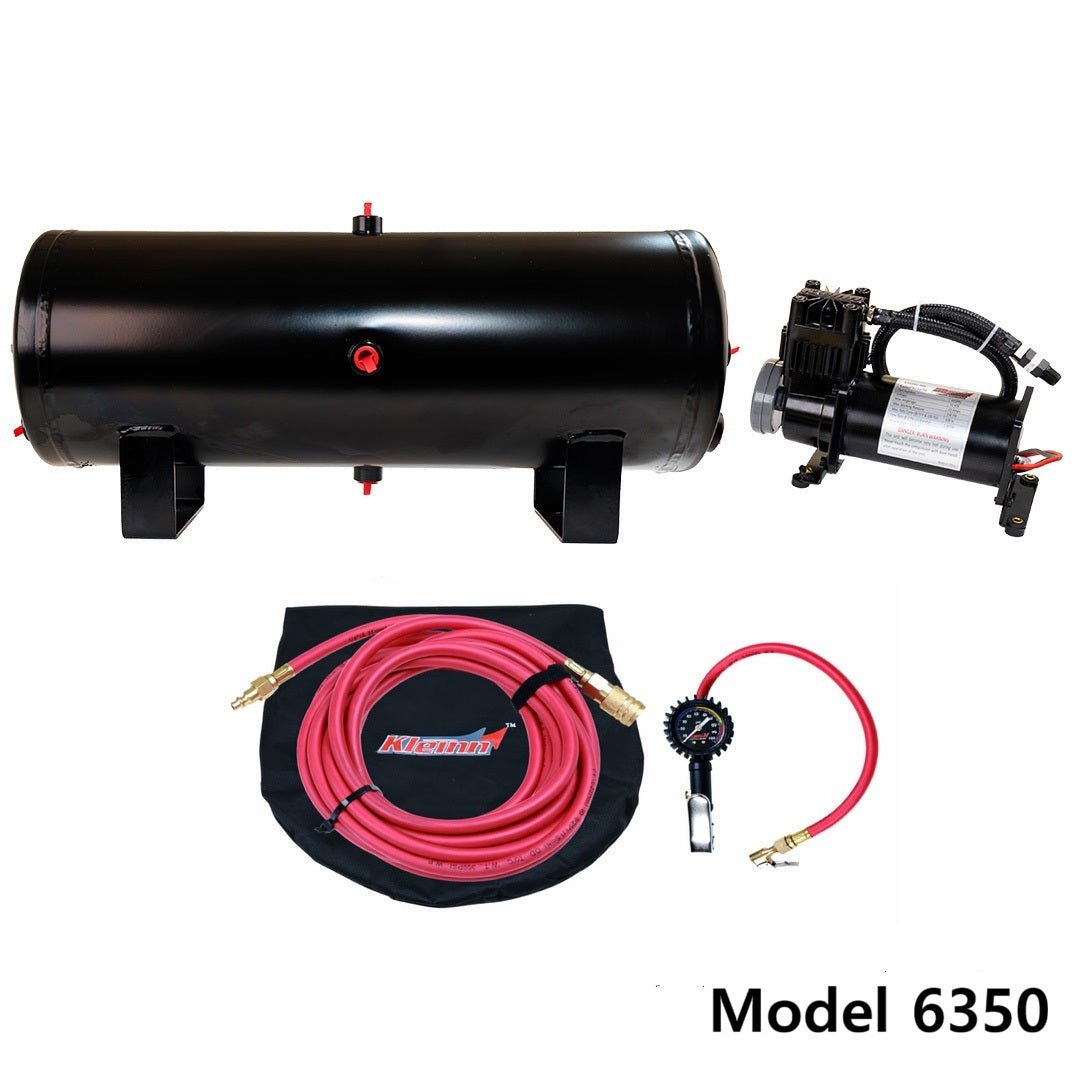

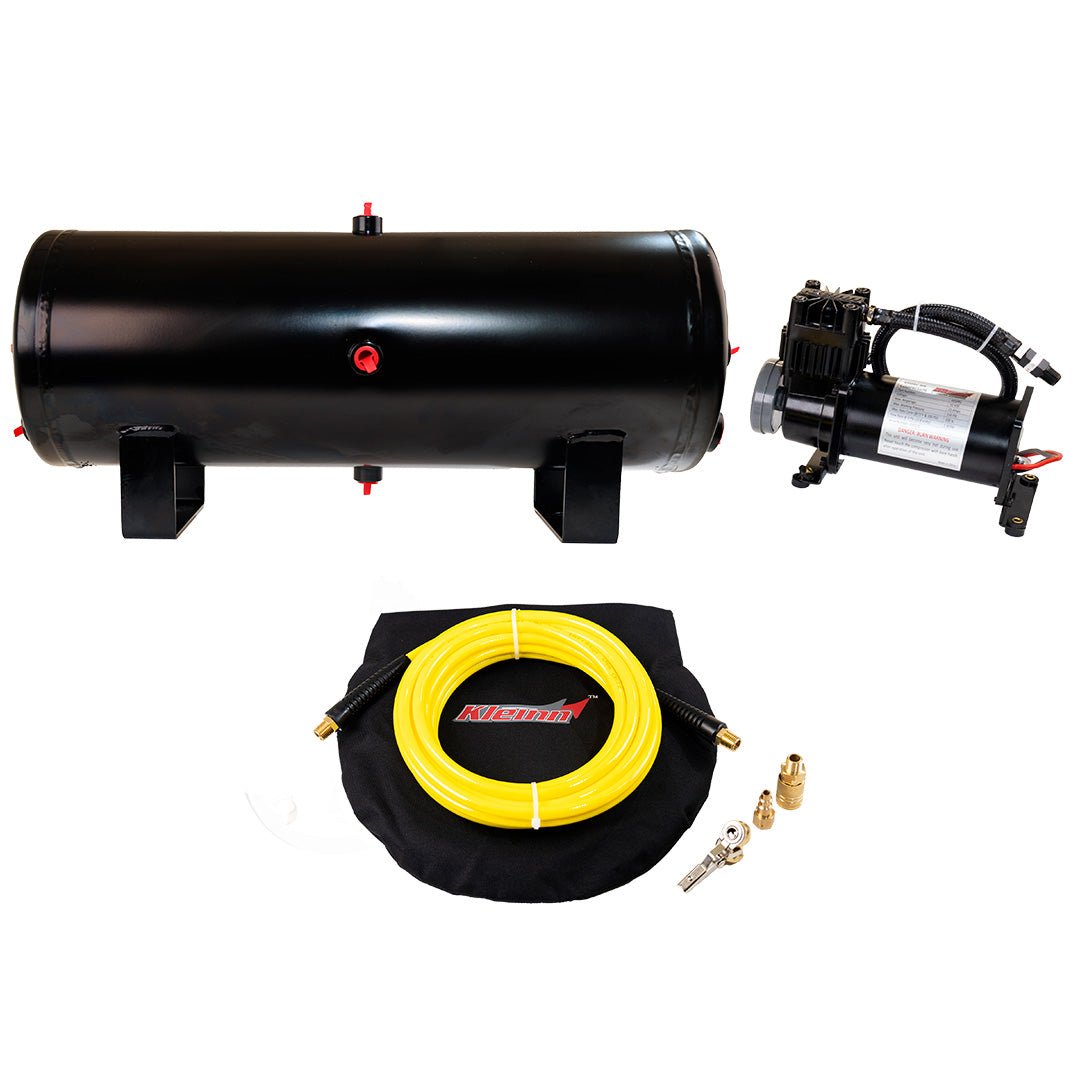

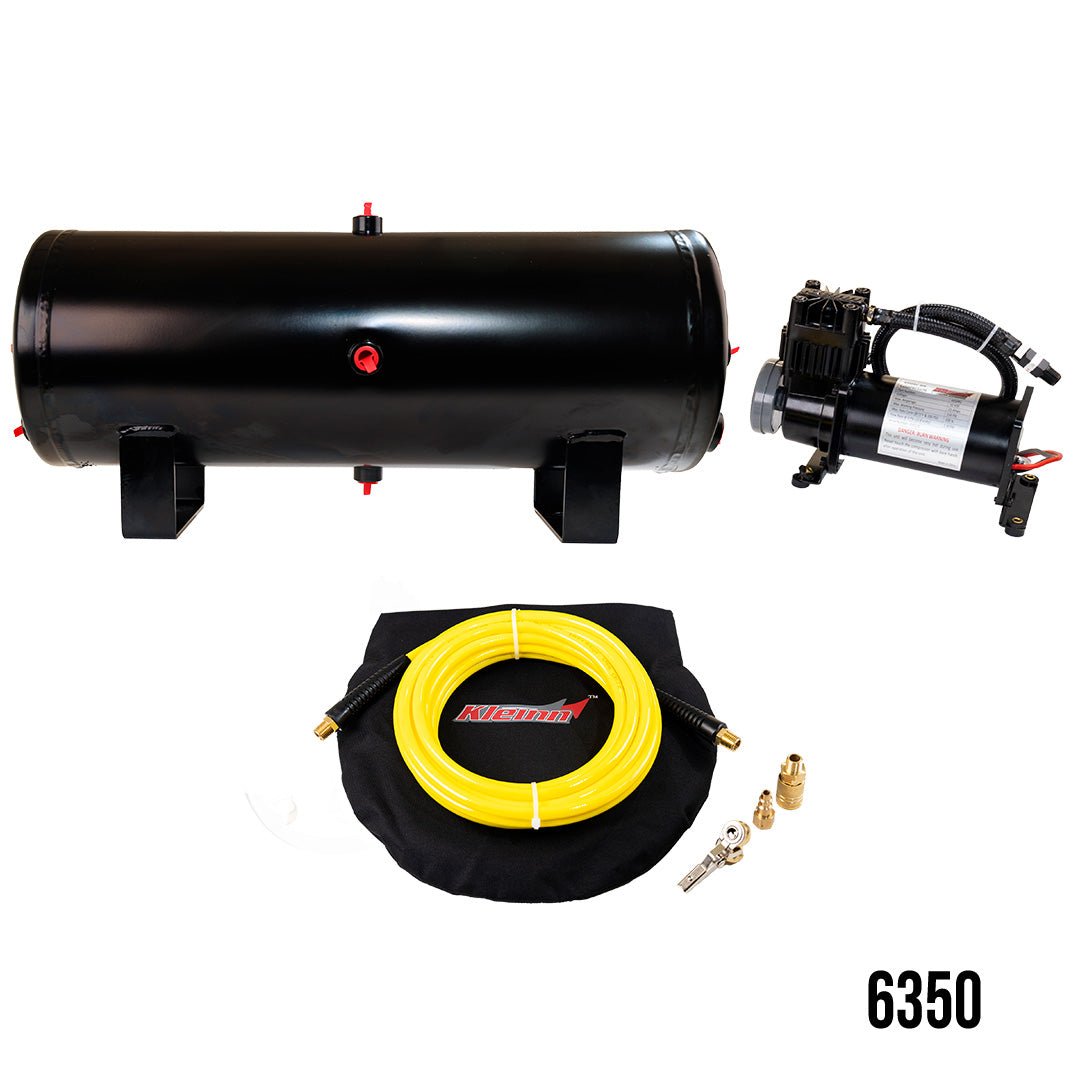

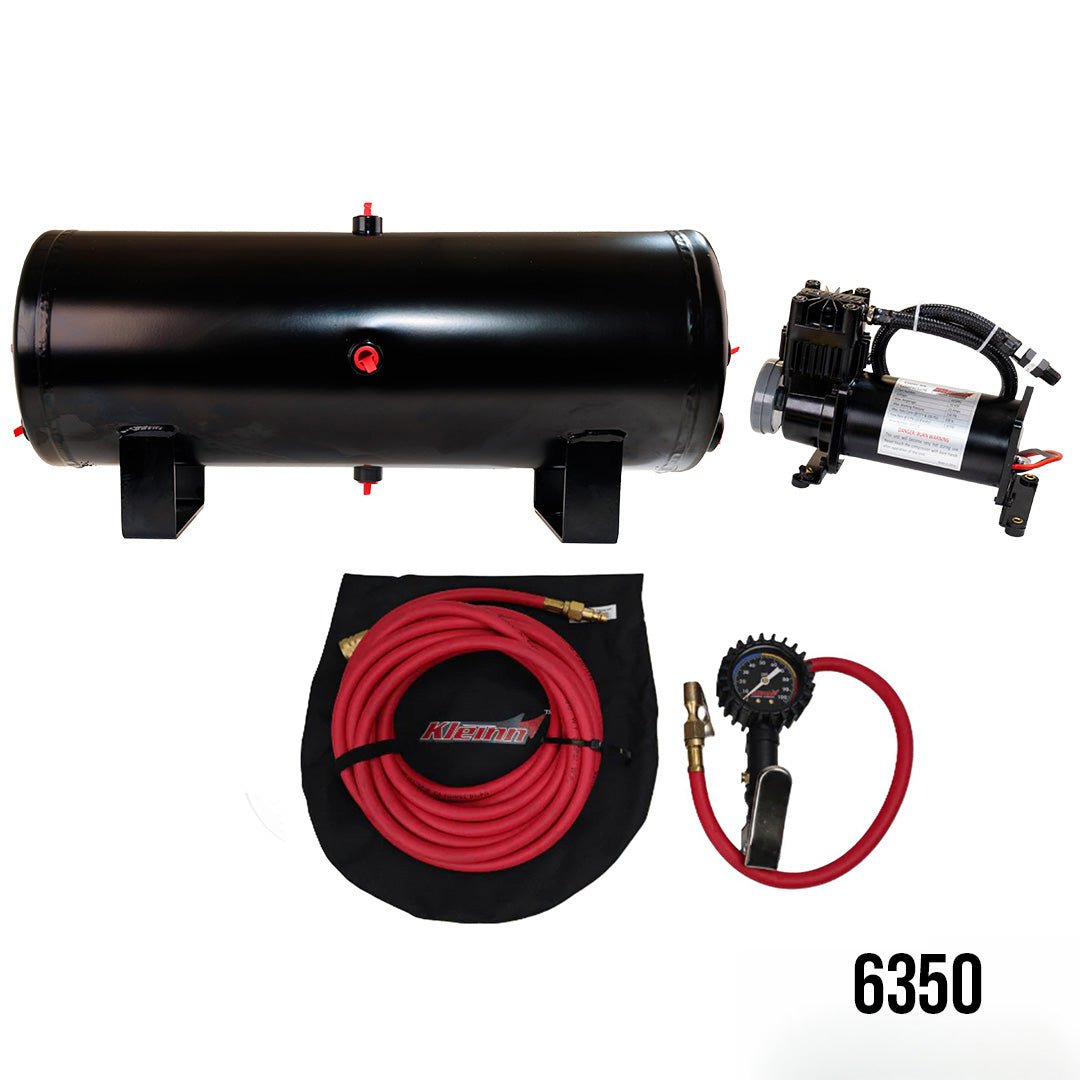

Model 6350: Heavy-Duty 150 PSI Onboard Air System
Professional grade performance
Step up to the big leagues with the Model 6350, a powerhouse onboard air system designed for those who demand more than just a horn blast. Featuring a high-output 100% duty cycle compressor, this system is engineered for continuous use, making it the ultimate solution for demanding automotive applications. Designed for installations where space is at a premium, it packs professional-grade performance into a compact package featuring a long, slim tank.
Power beyond the horns
With a massive 3-gallon air tank, you have the volume needed to do more than just rattle windows. This system provides a reliable air source for inflating tires up to 35”, powering high-performance air horns and train horns with ease, and managing air suspension bags or lockers. To ensure maximum longevity, the tank is built with an internal anti-corrosion coating, and the fully waterproof compressor delivers long-term reliability in any environment.
The ultimate trail companion
Go from the highway to the trail without hesitation. The Model 6350 includes a premium tire inflation kit housed in a custom Kleinn storage case. This kit features a 24’ heavy-duty air hose with quick-connect fittings attached and a professional-grade inflator with an integrated luminescent gauge, clip-lock chuck, and pressure release valve for fast, accurate inflation.
Why Choose Model 6350?
What's in the box?
6350RC Compressor Specifications
|
Feature |
Feature Details |
|
Part Number |
Model 6350RC |
|
Warranty |
1-Year |
|
Max Pressure |
150 PSI |
|
Duty Cycle |
100% @ 100 PSI (@ 72° F) |
|
Flow Rate |
@ 0 PSI (13.8 Volts): 2.11 CFM |
|
Compressor Type |
Waterproof Sealed, Oil-less |
|
Voltage |
12-Volt DC |
|
Motor Type |
Permanent Magnetic Motor |
|
Max Tank Size |
5.0 Gallon |
|
Max Amp Draw |
21 Amps |
|
Dimensions |
9.25” L x 4” W x 6.50” H |
|
Mounting Holes |
7.32” L x 3.31” W (5mm Diameter) |
|
Mounting Note |
Mountable in any position except upside down |
|
Shipping Weight |
10 lbs |
|
Pressure Switch |
P/N 2151 (Works with 52175 Safety Valve) |
Air Tank Specifications
|
Model 6350RT Air Tank |
|
|
Warranty |
1-Year |
|
Tank Capacity |
3-Gallon |
|
Construction |
All Steel Design (Gloss Black Epoxy Finish) |
|
Internal Coating |
Cortec Internal Anti-Corrosion Coating |
|
Mounting Legs |
2 Legs w/ 4 Mounting Points |
|
Air Tank Ports |
6 - 1/4" NPT Ports & 1 – 1/2" NPT Ports |
|
Mounting Hardware |
Fitting Pack - 4 Bolts, Nuts, Washers |
|
Max Pressure |
200 PSI |
|
Dimensions |
21” L x 8” W x 10” H |
Air Tank Fill Rate Details
|
Tank Capacity |
Tank Pressure Range |
Tank Fill Rate |
|
2.5 Gallon |
0 - 150 PSI |
4 Min. 35 Sec. (+/- 10 Sec.) |
|
2.5 Gallon |
110 - 150 PSI |
59 Sec. (+/- 5 Sec.) |
|
5.0 Gallon |
0 - 150 PSI |
9 Min. 15 Sec. (+/- 10 Sec.) |
|
5.0 Gallon |
110 - 150 PSI |
2 Min. 25 Sec. (+/- 5 Sec.) |
Installation Instruction Links:
Compressor Overview & Instructions

$529.95
Kleinn Automotive Accessories is committed to delivering high-quality products to our customers. We stand behind the craftsmanship and materials of our products by offering a comprehensive one-year limited warranty. This warranty is extended to the original purchaser, ensuring that when our products are installed properly and used under standard conditions, they will be free from defects in workmanship and materials for a period of one year from the original date of purchase.
This warranty encompasses a promise that the product you have purchased will perform as expected under normal use conditions and will not suffer from flaws in materials or craftsmanship. However, it is important to note that this warranty does not cover any damage that results from abusive use, operation that is not in line with the product’s intended purpose, or harm resulting from exposure to harsh environmental conditions. In the event that a product is found to be defective within the warranty period following a thorough inspection, Kleinn Automotive Accessories reserves the right to either repair or replace the defective item at no additional charge to the purchaser. It is our goal to ensure that our products meet the high standards that our customers expect, but we also want to clarify that Kleinn is not responsible for covering any costs related to the installation of our products, nor are we liable for any loss or damage that may occur as a result of the repair or replacement process of any product under warranty.
Understanding the specific needs of our customers and the demands placed on certain products, Kleinn Automotive Accessories is pleased to offer an exclusive extended two-year warranty for our 6450/6650 Compressors and 730 Horns. This special warranty extension reflects our confidence in these products’ durability and performance. Eligible products under this extended warranty will enjoy all the benefits of our standard one-year warranty with an additional year of protection, totaling two years from the date of purchase. This extended warranty coverage ensures that these specific models, recognized for their robustness and reliability, receive the extra assurance customers desire for these critical components.
Should you need to initiate a return under the warranty, we have a straightforward process designed to make it as convenient as possible for our valued customers. To start, you will need to email a copy of your sales receipt, which must be dated within the past year for standard warranty claims or within the past two years for claims under the extended warranty for the 6450 Compressors and 730 Horns. This email should be directed to our Warranty Manager and include your full name, email address, telephone number, and a concise description of the problem you are experiencing.
Upon receipt of your email, a dedicated representative from Kleinn Automotive Accessories will reach out to you directly. Our first step will always be to attempt to resolve the issue through technical support, aiming to provide a quick and effective solution. If the problem cannot be addressed remotely, our representative will issue a Return Authorization number. This number is crucial as it will identify your return throughout the inspection process. You are then required to send the product back to Kleinn Automotive Accessories for a comprehensive physical inspection.
Upon inspection, if the product is determined to be defective due to issues in workmanship or materials, Kleinn will undertake to either repair or replace the product at our discretion. We are committed to ensuring that our customers receive products that meet our high-quality standards, and we will make every effort to resolve warranty claims to your satisfaction. However, if the inspection reveals that the product does not have a material defect, we will return the unit to the customer. In such cases, the shipping costs for the return will be the responsibility of the customer.
Your item must be in its original unused condition to be returned, unless there is a manufacturer defect. You must return the item within 30 days of your purchase.
1. Please email support@kleinn.com to request a refund and we will assign you a Return Authorization #.
2. Mail your returned item to:
Kleinn Automotive Accessories
Returns Department
4045 N Highway Drive
Tucson, AZ 85705
3. Include in your package a signed letter stating the reason for your return and the original receipt.
Merchandise that has been worn, used, or altered will not be accepted for return or exchange.
All returns are subject to a 15% restocking fee, which will be deducted from your refund. If shipping and handling fees were applied to your order, they are non-refundable.
